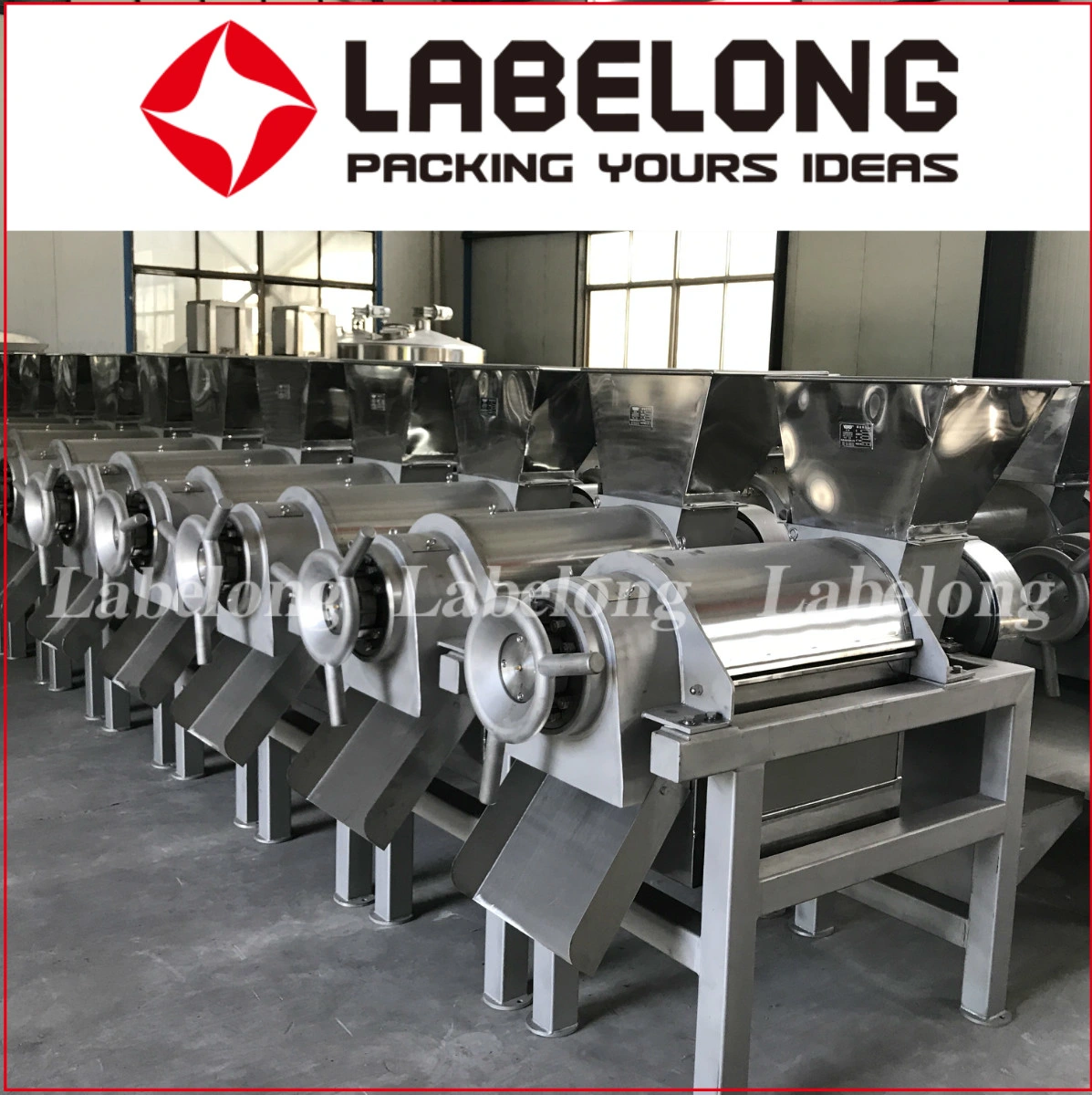

Mango/apple/pear Fruit Pulper/fruit pulp for juice filling machine
Production description
This machine is an special juice extractor and pulp extractor machine. Machine is mainly to press and pulp tropical fruit, such as, pineapple, banana, lemon, citrus, orange, passion fruit, dragon fruit, pitaya, papaya, pawpaw, lychee, litchi, jackfruit, passion flower, ect. Machine can peel fruit firstly, then juice extracting and pulping fruit. 304 stainless steel and high efficiency
Application:
Tomato, kiwi, strawberry, apple, orange flesh, haw, jujube, grape, macaque peach, mulberry notes, wax berry, etc, and after pre-cooking softening of haw, jujube,etc.Pulp machine can seperate fruit skin,core,seeds,also can cut vegetable,celery,etc.Seperate vegetable fiber from juice,also adapt mango and peach,coring and pulping
Working principle:
Motor drive the rotor rotation with high speed,put fruit in to the mouth,the screw convey
the material to the beating bar,with the beat,material being crushed.Because of the centrifugalforce ,juice and flesh through the screen hole in to next beating (Screen hole according to core size),core being discharged by slag bade,so core and pulp being
seperated.Fruit pulp machine has single channel beater and double channel beater
When used to mango pulp making,if choose single channel beater,skin and flesh flow into buffer tank,core discharge.If choose double channel denucleation beater ,first channel for removing core,second core for making pulp,full automatic seperate skin,core,residue;except the transmission part,are adopt 304stainless steel,sealer is food standard rubber.
Specification of fruit pulp machine
Contact me
Production description
This machine is an special juice extractor and pulp extractor machine. Machine is mainly to press and pulp tropical fruit, such as, pineapple, banana, lemon, citrus, orange, passion fruit, dragon fruit, pitaya, papaya, pawpaw, lychee, litchi, jackfruit, passion flower, ect. Machine can peel fruit firstly, then juice extracting and pulping fruit. 304 stainless steel and high efficiency
Application:
Tomato, kiwi, strawberry, apple, orange flesh, haw, jujube, grape, macaque peach, mulberry notes, wax berry, etc, and after pre-cooking softening of haw, jujube,etc.Pulp machine can seperate fruit skin,core,seeds,also can cut vegetable,celery,etc.Seperate vegetable fiber from juice,also adapt mango and peach,coring and pulping
Working principle:
Motor drive the rotor rotation with high speed,put fruit in to the mouth,the screw convey
the material to the beating bar,with the beat,material being crushed.Because of the centrifugalforce ,juice and flesh through the screen hole in to next beating (Screen hole according to core size),core being discharged by slag bade,so core and pulp being
seperated.Fruit pulp machine has single channel beater and double channel beater
When used to mango pulp making,if choose single channel beater,skin and flesh flow into buffer tank,core discharge.If choose double channel denucleation beater ,first channel for removing core,second core for making pulp,full automatic seperate skin,core,residue;except the transmission part,are adopt 304stainless steel,sealer is food standard rubber.
Specification of fruit pulp machine
Model | Name | Capacity(T/H) | Power(KW) | Dimension(mm) |
L-P120 | Single beater | 0.12 (for tomato) | 1.5 | 1000*830*948 |
L-P250 | Single beater | 2.5 (for tomato) | 4.0 | 1450*770*1523 |
L-P500 | Single beater | 5 (for tomato) | 11 | 1900*850*1700 |
L-PD200 | Double beater | 2.0 (for tomato) | 7.5 | 1535*1420*1533 |
L-PD250 | Denucleated single beater | 1.5 (for mango) 2.5 (for tomato) | 4.0 | 1450*770*1650 |
L-PD400 | Denucleated double beater | 1.8 (for mango) 4 (for tomato) | 7.5 | 1535*1420*1680 |
L-PD500 | Denucleated double beater | 3 (for mango) 5 (for tomato) | 15.0 | 1935*1650*1900 |
Our Production
Labelong focus on filling, packing & water treatment field, our factory takes up 60000 square meters ,more than 30 Professinal Tehchnicians and workers which is one of the professional & reliable Chinese manufacturers & provider for liquid & semi-liquid filling & packaging machinery, blow molding machines and water treatment systems with reliable quality & pretty good after sale service with CE certification & ISO9000:2001 certification.No. | Production line category | Capacity |
1 | Hot filling production line | 3,000-36,000BPH |
2 | Beverage processing System | 1,000 Ltrs/H to 10,000 Ltrs/H |
3 | Bottled water production line | 3,000-36,000BPH |
4 | 5L Large capacity bottled water production line | 700-5,000BPH |
5 | Carbonated drink production line | 3,000-18,000BPH |
6 | Pulp juice production line | 5,000-22,000BPH |
7 | Oil Filling line | 3,000-10,000BPH |
8 | Linear Filling machine | 300-900BPH |
9 | Bottlle Unscrambler | Up to 20,000BPH |
10 | 3/5 Gallon water production line | 300-2000 bucket/H |
11 | Water Treatment system | 1,000 Ltrs/H to 10,000 Ltrs/H |
12 | OPP Labeling machine | 6,000-24,000BPH |
13 | PVC Shrink Sleeve Labeling machine | 6,000-24,000BPH |
14 | Automatic Blow molding machine | 1,000-7,000BPH |
15 | Full-automatic Film Wrapper & Shrinker | 8-20packs per minutes |
