1. Product introduction:
Water treatment processes generally produce water-containing sludge of different nature. The sludge treatment equipment mainly reduces the water content of the sludge, reduces the water content, reduces the sludge volume, and brings convenience for the subsequent treatment or disposal of the sludge. Sludge dewatering equipment can generally be divided into belt filter press, centrifugal dewatering machine, plate and frame filter press and stacked screw sludge dewatering machine. The snail sludge dewatering machine is a new type of sludge dewatering equipment. With its advantages of energy saving, stability and high automation, it is quickly recognized and accepted by the market.Pulping Wastewater Screw Sludge Dewatering Equipment
Pulping Wastewater Screw Sludge Dewatering Equipment
The TLDL series snail sludge dewatering machine produced by Shandong Tianlang Environmental Protection Technology Co., Ltd. uses the principle of screw extrusion, the strong squeezing force generated by the screw diameter and pitch variation, and the tiny between the swimming ring and the fixed ring. A new solid-liquid separation device for sludge extrusion and dewatering.


2. Product features:
1. Wide range of applications
It is widely used in sludge dewatering in municipal sewage, food, beverage, slaughtering, printing and dyeing, petrochemical, paper, leather, pharmaceutical and other industries.
The unique dehydration principle makes the equipment suitable for high and low concentration sludge. Starting from 2000m/L, it has created a precedent for direct dewatering of low concentration sludge. The innovative structural design makes the equipment suitable for all types of sludge with high and low viscosity, especially oily sludge. It is a tool for dewatering oily sludge.


2, equipment is not easy to block
The unique dynamic and static ring filter joint structure makes the equipment not easy to block, and does not need to be cleaned to prevent the filter joints from being clogged, completely reducing the flushing water consumption, reducing the internal circulation burden, and solving the troubles caused by the traditional dewatering equipment blockage.

3, continuous automatic operation
The snail sludge dewatering machine pumps the sludge, adds the liquid medicine, and discharges the mud cakes. It is automatically controlled by the electric control cabinet, the dosing device, the mud pump, the dosing pump, etc., without the need for personnel to operate the equipment. The operation will not cause blockage, filter belt deviation or other phenomena that affect the safety of the process. The daily maintenance and maintenance is simple and can be run continuously for 24 hours. For the first time, the continuous automatic operation of sludge dewatering was realized.

4, save operating costs
Integrated compact design saves operating costs; Low-speed spiral extrusion saves electricity costs; Equipment is not blocked, and water consumption is greatly saved; Automatic unmanned operation saves labor costs.

5, no secondary pollution
The rotation speed of the screw shaft is about 2-3 rpm, the vibration is small, and the noise is very small. The stacking screw has self-cleaning function, no clogging problem, only a small amount of water washing, no secondary pollution; The mud runs under such a slow working condition, and the odor does not spread, thus creating a very comfortable operating environment.

6. The body is light and durable
Due to the direct use of mechanical extrusion dewatering, there is no need for a large body such as a drum, so the machine is designed to be quite lightweight; the body is almost entirely made of stainless steel, and the replacement parts are only the screw shaft and the swimming ring, which has a long service life and durability.

7, Saving engineering investment
The snail sludge dewatering machine itself has a sludge concentration function, which can directly treat the aerobic sludge in the aeration tank, does not require a concentration and storage unit, and reduces the overall land occupation and construction cost of the sewage treatment facility.

8, Enhance the function of phosphorus removal
The sludge is dehydrated under aerobic conditions, and the release of sludge phosphorus under the anoxic or anaerobic conditions in the conventional sludge concentration tank or storage tank does not occur, thereby improving the phosphorus removal function of the entire sludge treatment system.Pulping Wastewater Screw Sludge Dewatering Equipment


3. Work principle:

The main body of the TLDL series snail sludge dewatering machine is composed of multiple fixing rings and swimming rings, and the screw shaft penetrates through the filtering device formed therein. The front section is the enrichment section and the rear section is the dewatering section. The sludge concentration and press dewatering work is completed in one cylinder, replacing the traditional filter cloth and centrifugal filtration mode with a unique and delicate filter mode.
After being concentrated by gravity in the concentration section, the sludge is transported to the dewatering section. During the advancement process, as the filter joint and the pitch gradually become smaller, and the back pressure plate blocks, the pressure is greatly increased, and the volume is continuously reduced. Fully dehydrated.

There are several models you can choose
ModelDS Capacity
(kg/h)
Power(kw)dimensions
(L*W*H)mm

weight
(kg)
Feeding
concentration
(%)
Pulping
concentration
(%)
TLDL-1313-60.471816*750*10401943-825-40
TLDL-13212-200.572065*900*10402753-825-40
TLDL-20112-200.742500*630*13502953-825-40
TLDL-20218-300.742500*680*14503303-825-40
TLDL-30130-501.112500*930*14504703-825-40
TLDL-30260-1000.923200*970*1790 650 3-8 25-40
TLDL-30390-1501.653600*1200*1790 1150 3-8 25-40
TLDL-401100-2002.054200*850*19600 1270 3-8 25-40
TLDL-402200-3003.754350*1300*1960 2350 3-8 25-40

Pulping Wastewater Screw Sludge Dewatering Equipment

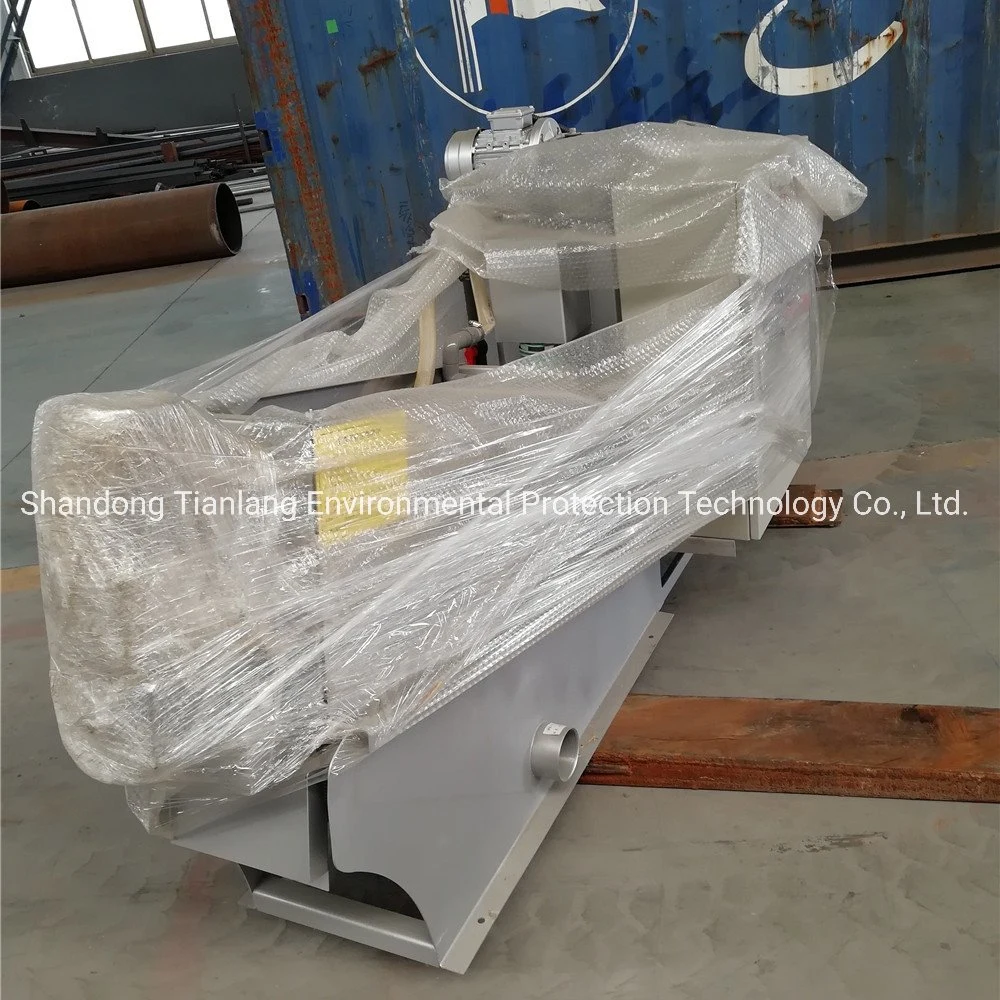

4. Packing & shipping
Pulping Wastewater Screw Sludge Dewatering Equipment

5. Company profile:
Shandong Tianlang Environmental Protection Technology Co., Ltd. is a high-tech enterprise integrating environmental equipment production and R&D. The company is located in Zhucheng City, Shandong Province, with beautiful scenery.  It has convenient transportation because it nears Qingdao and Rizhao seaport.
Covering an area of 80,000 m2, the company has advanced production line and production technology. By absorbing the advanced manufacturing concepts and sewage treatment experience of the same industry at home and abroad, it has cooperated with many well-known sewage treatment experts and universities. It has Strong non-standard design and manufacturing capabilities, perfect production testing equipment, complete manufacturing specifications, stable and reliable product quality.

As a production and research enterprise for environmental protection equipment, the company mainly develops and produces sewage treatment equipment, sludge dewatering equipment, waste gas treatment equipment, manure fermentation equipment and waste incinerator. Products are widely used in agriculture, aquaculture, petroleum, chemical, paper, pharmaceutical, food, starch, metallurgy, slaughter, printing and dyeing and other fields. There are dissolved air flotation machine, integrated sewage treatment equipment, MBR bioreactor, mechanical filter, disinfection equipment; belt filter press, plate and frame filter press, screw dewatering machine and waste incinerator nearly 100 kinds of products and accessories. trusted by the majority of users, it become the backbone of China's environmental protection industry.

In the face of fierce competition in the market, our company adheres to the business philosophy of ""Focus on quality, keen on innovation", continuously strengthens the product research and development, so that the product has a broader market.
Looking forward to the future, we will continue to provide more high-quality products and prompt and sincere service to customers, and supply environmental protection solutions to you.Pulping Wastewater Screw Sludge Dewatering Equipment


6. Certificates:Pulping Wastewater Screw Sludge Dewatering Equipment

Why choose us?
a. Factory directly manufacture. Professional Directly factory of spiral sludge dehydrator.
b. Can be trusted.
Have supplied spiral sludge dehydrator to UN.
c. Big company. We have CE, ISO, OHSAAS Certificates.
d. Gurranteed quality. We tested running every spiral sludge dehydrator before shipment.
e.  Ecellent service. will always be online service on you in 24hours/day.
